Rack PDU 1U 15A 115V
NEMA 5-15P Plug (8)NEMA 5-15R Outlet |
|
|
|
|
|
 |
|
 |
|
Features
Features
- Built-in web server enables real time remote monitoring of the current consumption of the power strip
- Build-in true RMS current meter
- Easy set up (e.g. the meter can read the IP address directly)
- Secure with SSL support
- Provides audible alarm when the power consumption over the threshold of warning and overload
- Sends email and SNMP traps when the power consumption exceed the trigger value of warning or overload to the PDU
- Supports SNMP and provides MIB for the PDU to be monitored by NMS
- Provides per outlet power protection by the circuit breaker
- Real time individual control of each PDU outlet
- Indicate outlets status with LED
- Supports power on sequence
Model IP-PDU9108-US
- USA model
- Output 8 x NEMA 5-15/20R outlets
- Input 1 x IEC320 C20 inlet
- Enclosed IEC320 C19 to NEMA 5-15P Power Cord 3 Meters long
- Protection 1 x 15 AMP Circuit Breaker
- Nominal Voltage 115V
- Frequency 50/60HZ full range
- For 110-127V
- Total Max output current for per 4 outlets : 15 Amp (UL derated 12 Amp)
- Use power IN cable with 15A current rating
- Use power OUT cable with 150A rating for each power outlet
- Regulatory Approvals
- UL 60950-1, UL Listed, CSA, cUL Listed,CB by UL
- CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN 61000-3-3
- FCC Part 15 Class A, ICES-003

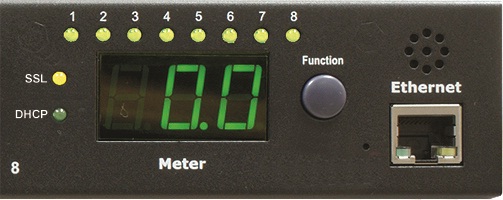

Communication
- SSL Indication Yellow LED
- DHCP Indication Green LED
- Output Status 8 x Green LED
- Network 1 x RJ45 for Ethernet
- Current Meter
- 3 Digits Seven Segments for True RMS Meter
- Range: 0A ~ 20 A
- Resolution: 0.1A
- Precision: +/-2%+/-0.1AMP
Mechanical
- Temperature 0 ~ 40 Celsius degree
- Humidity 0% ~ 90%
- Size 90 x 432 x 44 mm (1U rack mount)
- Weight 2 kg
|
|
|
 |
|
 |
|
|
|
