9258 IP Power
Our Price:
$199.00
Product Code:
508000
Description
Technical Specs
IP Power 9258 power strips allow browser control of four AC power outlets. The strip is IP addressable, so each outlet can be independantly turned ON/OFF or cycled for power-on reset.
Features
Built in web server can be accessed locally or remotely over the Internet
Supports multiple browser types (e.g. Fierfox, Internet Explore, Netscape) so you can operate the switch and check the state without any custom
Can be managed using serial port when connected to Opengear console server
Controls four AC outlet equipment at the same time
Supports HTTP, DDNS , SMTP, SNMP, INTERNET- fixed IP, DHCP, LAN - virtual IP
Security password identity. Easily installed and can be updated online
RS232 port communicates real time state of 9258
Separated LED indicates the state of each switch
Safely designed for high voltage resistance and protection for leakage of electrical currency, using nonflammable material
Network server reboot can remote control to reboot the power on for the PC or Server at remote site

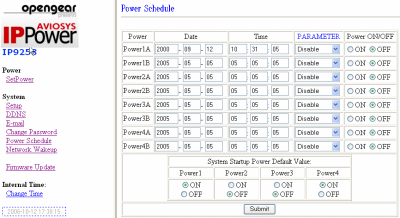

Timer Schedule can pre-set the time schedule to turn power on / off
NTP (Network Time Protocol ) support synchronizes the time of 9258 to the Internet web address time
Setup up own outlet default : when regain power it store each outlet to those status setting
Arrange own webpage design : Change the user-defined graphics and hyperlinks to customize the web pages by webpage SDK
Provide SDK (VB & VC) for own software develop and application
Safety shut down controlled PC/ Server ( Windows )
Model 9258T
USA model
NEMA5-15P outlets
For 100-120V
Total Max output current for per 4 outlets : 15A.
Individual Max output current for per outlet : 6A.
Use power IN cable with 15A current rating
Use power OUT cable with 10A rating for each power outlet
Ratings
Maximum rated voltage for each 4 outlet : 250V AC, 24V DC
Maximum rated currency for each 4 outlet : (Total) 15A AC/DC,
Maximum rated currency: ( Individual outlet ) 6A AC/DC
Action delay: Max 10ms
Operating Temperature: 0°C to 55°C
Controller dissipates 5 watts max.
Certifications
CE, FCC,LVD,C-Tick
ISO:9001:2000 manufacture
Mechanical
EC 320 Connector design (one Male type Inlet for power in, four Female type Outlet for power output)
Installs with standard PC power cords
One AC Power rocker switch with light
Four LED power switch status indicators
One RJ45 for Ethernet control.
One RS232 for UART control
Dimension 220mmx120mmX45mm metal case
Features
The compact IP Power 9258 PDU controls four AC power outlets. The PDU is IP addressable, so using a browser each outlet can be independently turned ON/OFF or cycled for power-on reset. The IP Power can also be controlled over the serial port when connected to an Opengear console server.

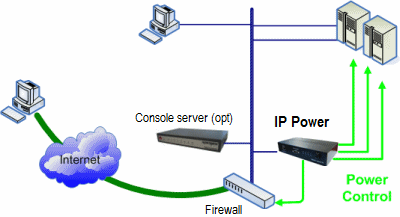

The IP Power is generally connected to the 10/100 local network and controlled using a standard web browser. Once the security login is approved, power at each of the outlets is controlled with a simple click in the browser.
Servers and network devices at local and remote sites can be rebooted - saving time and the cost of a remote site visit. Configurable timer options allow you to schedule powering remote appliances off and on. These schedules can be reprogrammed at any stage locally or remotely.
Each outlet can supply up to 6A of 120VAC or 250VAC power, using standard IEC 320 Inlet/Outlet power connectors. The power status is clearly displayed on the front panel and each outlet can also be manually controlled from there. No complexity. No software skill required.
